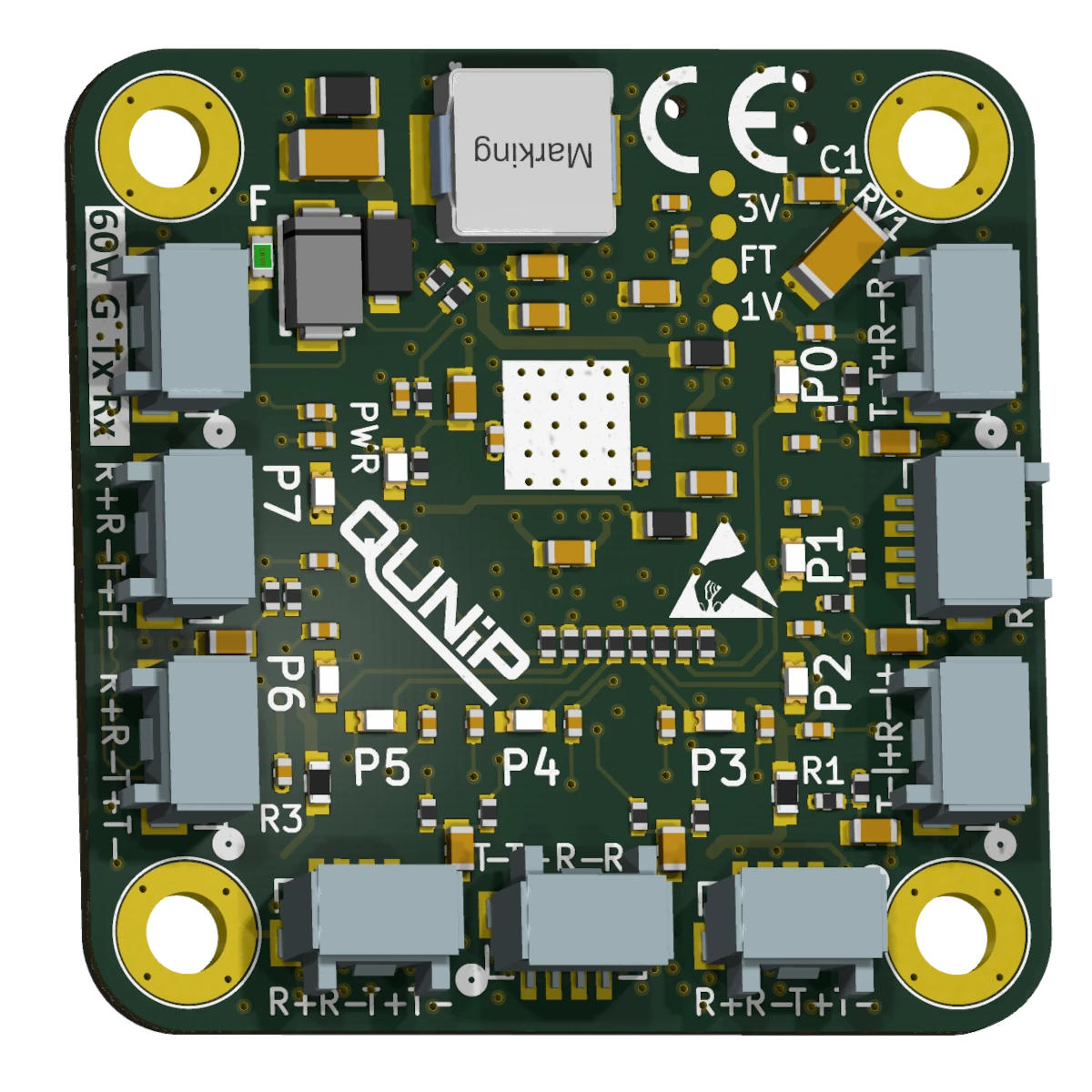

QSwitch Rendering

Dimensions

38.1 x 38.1 mm

Small.
Rugged.
QSwitch.

The QSwitch is an ultra-compact, 8-port 100BASE-TX Ethernet switch designed for high-density SWaP applications. Built for challenging environments.

✓

Standard Mounting: 30.5mm M3 pattern for seamless UAV stack integration.

✓

Wide Power: 5-60VDC input range for regulated rail or direct battery connection with transient protection.

Technical Specifications

Connectivity

8x 100BASE-TX

Pico-Clasp Connectors

Management

L2 Managed

Optional functionality

Power

<2.0 W

Peak power consumption

Environment

-20°C to +85°C

Target operating range

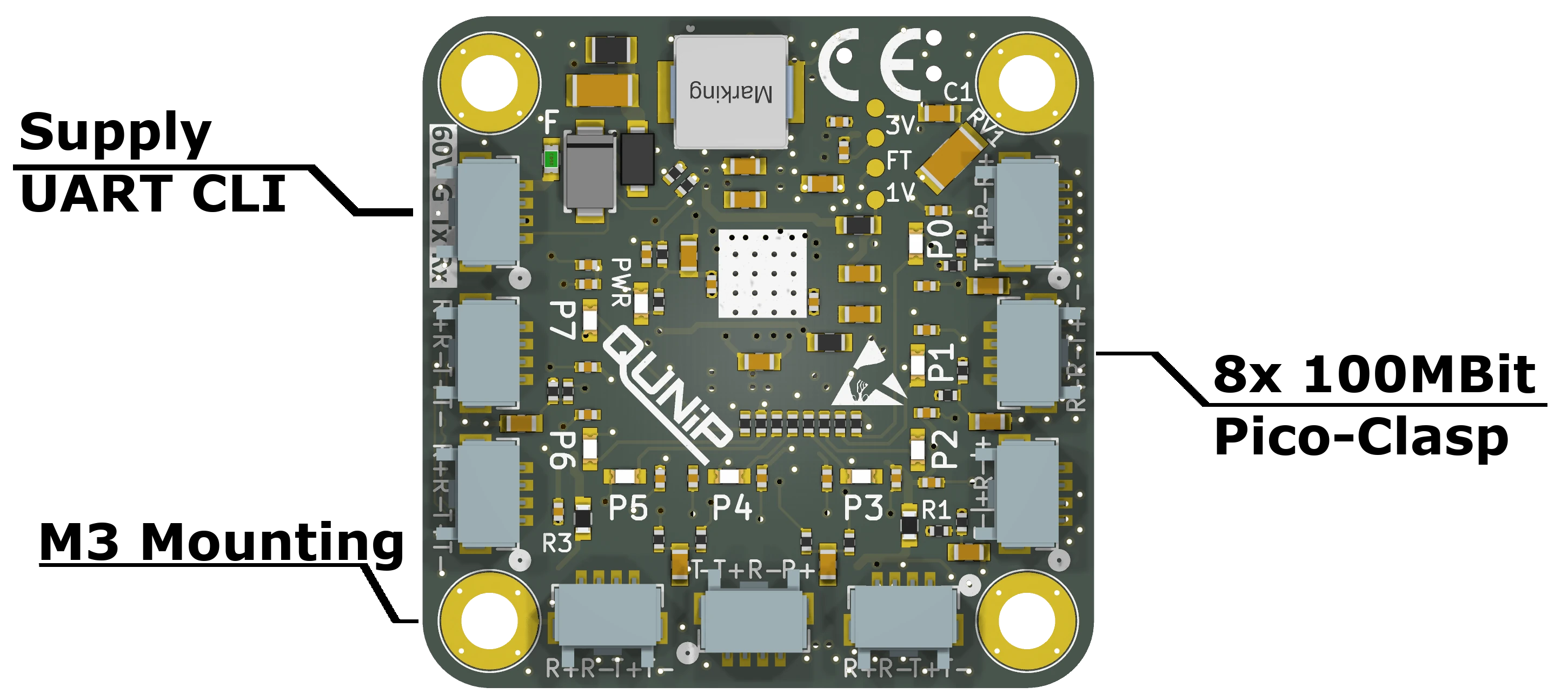

QSwitch Technical Layout and Dimensions Rendering

Arriving Q4 2026

Final validation is underway. Optional harness kits and full documentation will be available at launch.
